Our 6 developers release 5 new products each month MOQ of 500 pieces | 15- to 20-day delivery time | Nonstandard parts customized.
6 Years
| Ask Lasest Price | |
| Brand Name : | DASON |
| Model Number : | U0527-B001 |
| Certification : | ISO 9001 |
| Price : | 1.75~3USD |
| Payment Terms : | T/T |
| Supply Ability : | 300000 |
| Delivery Time : | 30day |

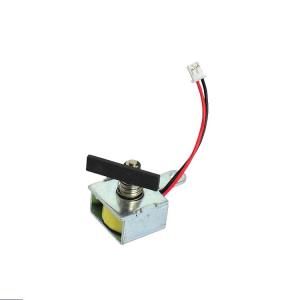

Small Electromagnetic Lock Copper Core Lock Tongue Intelligent Cabinet Electric Control Lock Mini Cabinet Electric Magne
Product Description
Product | Solenoid Lock | Insulation Class | B |
ModelDAN | -0527 | Service Life | 500 Thousand |
Voltage | DC6V | Lead time | 25 days |
Power | 6W | Sample Order | Acceptable |
Holding Force | >70g | MOQ | 500pcs |
Duty Cycle | 10% | Warranty | 1 Year |
Lead Wire | 20cm | Port of Loading | dongguan |
Solenoid model: DSN-0627, Pull type
Product voltage: DC12V, current: 0.43a
Product specification: length 27mm, width 34mm, height 17.6mm
Product features: the electric lock is instantaneous power, so the power consumption is low, and the common electric control lock uses high voltage, and this lock has simple structure, low cost and convenient installation.
Service life: more than 500000 times under rated working conditions
Dimensional drawing
Material description:
1. Armature: TISCO dt4c electrical pure iron
2. The Curie temperature curve is demagnetized without remanence
3. Copper base H62 copper, surface passivation treatment
anti-oxidation
4. Brilliant material: Teflon tape, good insulation performance, in
line with environmental requirements
5. The bayonet is made of imported stainless steel.
6. The armature was plated by electroless nickel plating, and the
salt spray test lasted for 72 hours
7. The enameled wire adopts high-quality enameled wire imported
from Germany, the temperature resistance grade is above 210
degrees, and the withstand voltage is more than 2000 v
Structure
Simple structure design, durable and reliable
Buckle and rubber sleeve parts reduce abrasion, extend service life
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: For holding electromagnet, in 7 days if have stock, or 10-15
days without stock. For push pull solenoid, it's custom product,
will take 20-30 days usually.
Q: Do you provide samples ? is it free or extra ?
A: Yes, samples are charged.
Q: How to choose the model?
A. For linear solenoid, please inform us below:
• push or pull type
• dimension limit
• stroke & force
• duty cycle
A.For holding electromagnet, please inform us:
• holding force you need
• dimension limit if have
• duty cycle
|
|
